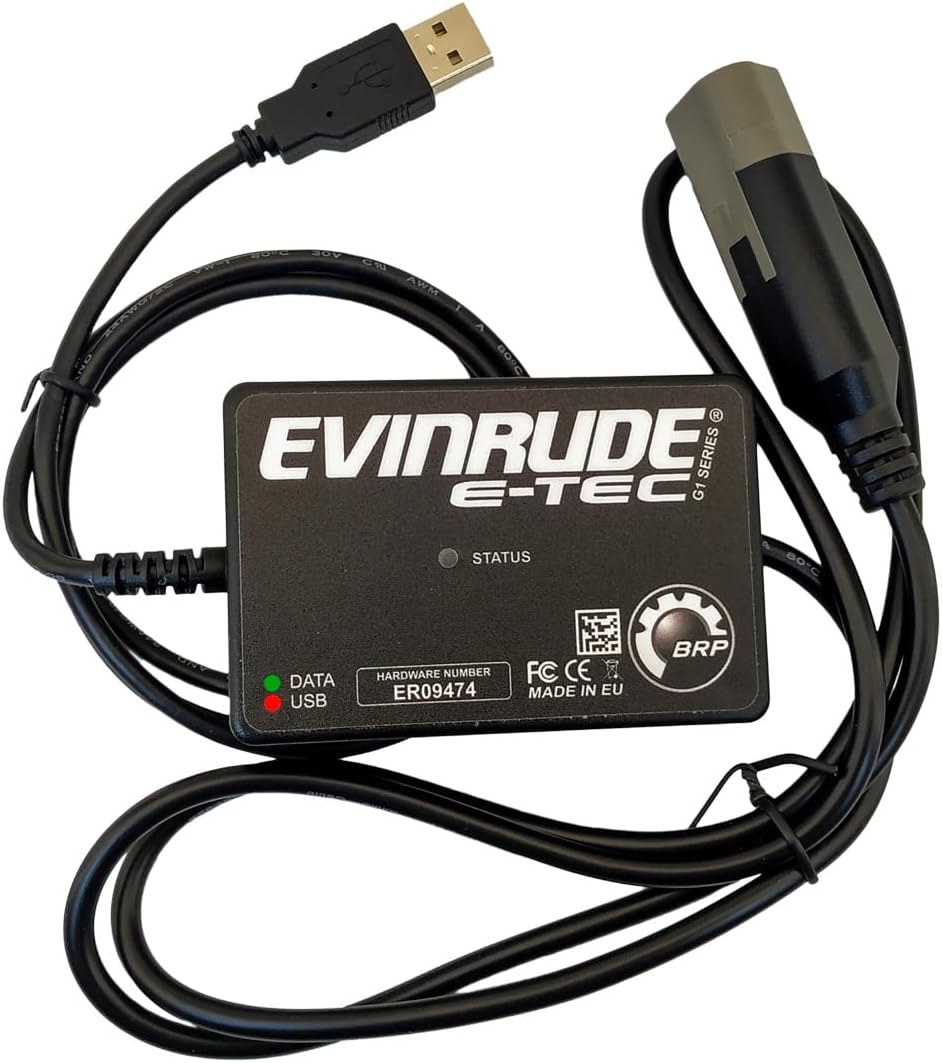

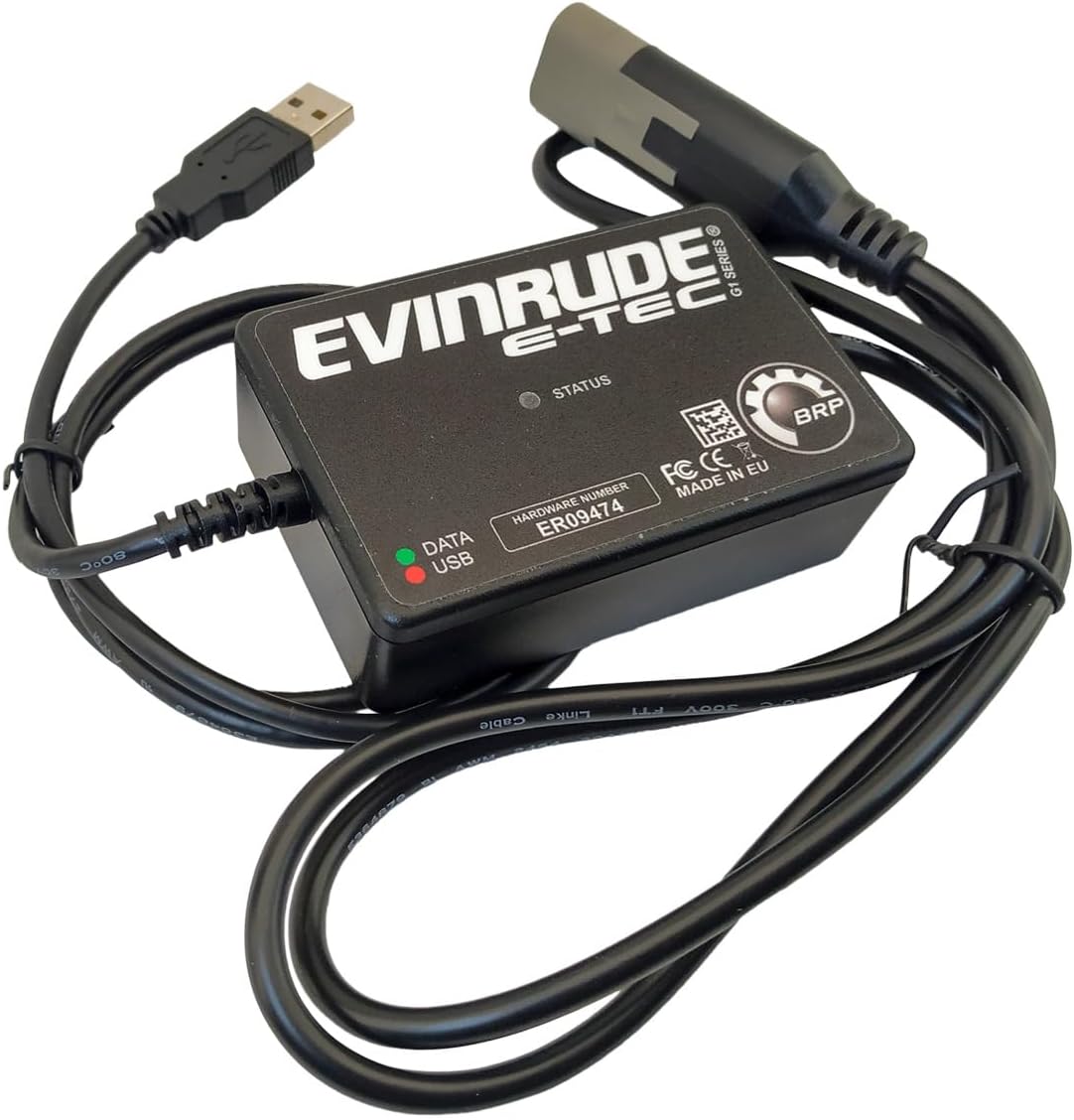

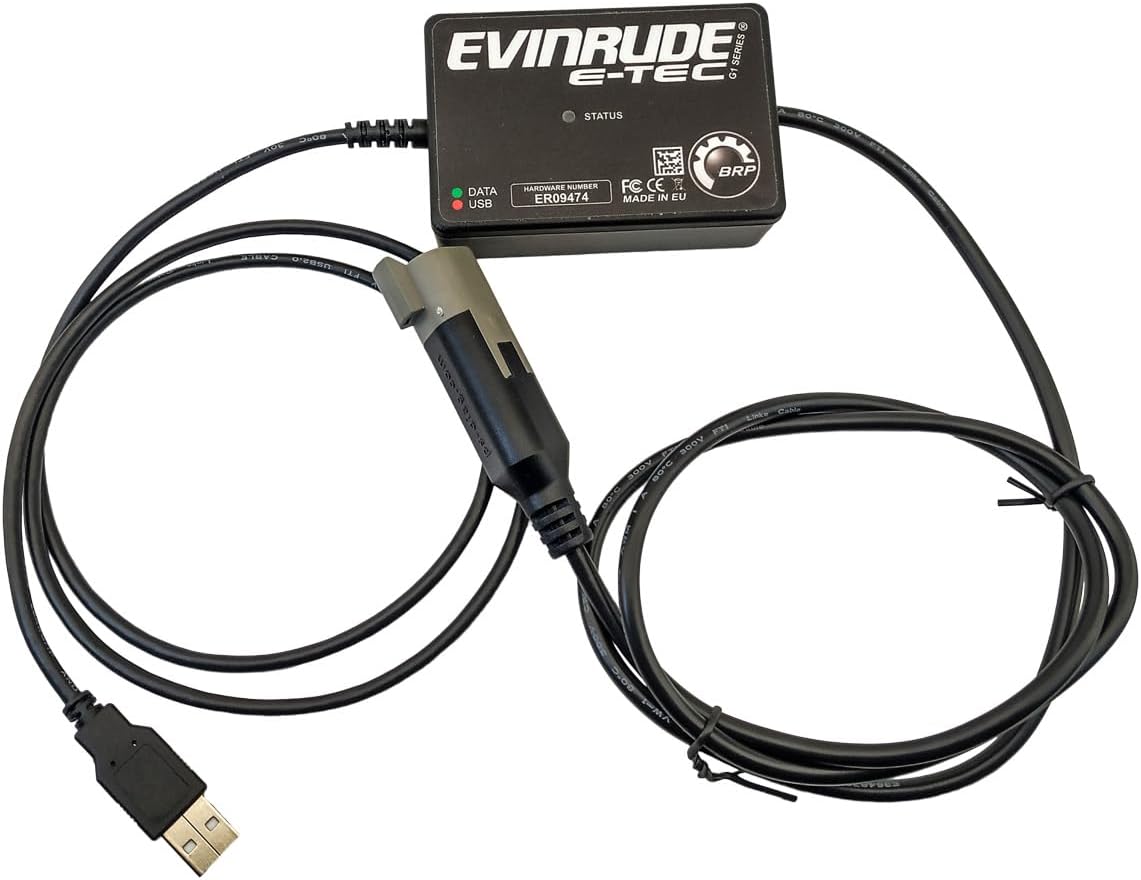

Take full control of diagnostics on your Evinrude outboard engine—whether you’re a marine technician, powersports enthusiast, or a DIY boat owner. This diagnostic kit connects directly to your engine’s ECU/EMM (Engine Control Unit / Engine Management Module) and gives you access to fault codes, live data streams, actuator tests, and system information. It’s a must-have tool for understanding engine behavior, preventing breakdowns, and keeping your motor performing at its best.
Key Features & Why They Matter
Read & Clear Fault Codes: Quickly identify issues in Evinrude E-TEC and Direct Injection (DI) engines. Clearing codes after repairs helps confirm problems are resolved. Real-Time Sensor & Actuator Data: View live readings for temperature sensors, ignition parameters, fuel injection status, and more—essential for diagnosing performance issues accurately. Actuator Testing Capability: Trigger injectors, pumps, and other components on command to verify proper function without disassembling the engine. Saves hours of troubleshooting time. EMM Identification: Pull engine module details such as firmware, serial data, and compatibility info—important for ensuring accurate repairs and updates. Visual Engine Diagnostics: Graphical engine performance screens make it easier to spot irregularities, efficiency loss, or developing mechanical problems.
Specifications
Brand: Powersports Diagnostics (EvDiag)
Display: 2.8-inch diagnostic screen
Power Source: Corded electric (requires external power; no internal battery)
Diagnosing and maintaining Evinrude E-TEC & DI outboard motors
Marine mechanics who need deeper insight into engine operation
Boat owners preparing for long trips or preventing on-water breakdowns
Troubleshooting performance issues related to fuel, ignition, or sensors
Benefits
Catch issues early and avoid costly mechanical failures
Reduce guesswork with clear live sensor information
Empower DIY users with professional-grade diagnostic functions
Improve engine reliability and potentially extend motor lifespan
FAQs
1. Which Evinrude models does this work with? It supports E-TEC and DI outboard engines equipped with ECU/EMM systems.
2. Can I reset error codes? Yes—reading and clearing fault codes is one of its primary features.
3. Does it show live engine data? Absolutely. You can view temperatures, ignition timing, fuel sensor data, and more in real time.
4. Can I test components like injectors? Yes. You can activate injectors, pumps, and other actuators to confirm functionality.
5. Is it difficult to set up? Setup is simple—plug into the diagnostic port and follow the on-screen prompts.
6. Does it need special software? Firmware updates may be available; check with Powersports Diagnostics for the latest version.
7. Does it have an internal battery? No—it's corded electric and must be plugged in during use.
8. Is it good for DIY boat owners? Yes—it's designed for both professionals and serious DIY mechanics.
9. Can it harm the engine if used wrong? Actuator tests should be used carefully. Triggering components improperly can stress them—always understand a test before running it.
10. Does this tool tune the engine? No. It helps diagnose performance issues but does not perform tuning. Adjustments still require mechanical or software changes outside the tool.
Evinrude Diagnostic Kit with EvDiag Scanner – Outboard Engine Code Reader & Data Tool
