EvDiag Live Data Monitoring Guide: Read Sensor Outputs

Modern vehicles generate an enormous amount of data every second. Behind the scenes, dozens of sensors constantly measure temperature, pressure, airflow, engine speed, and more to keep your vehicle running efficiently.

With tools like the EvDiag, you can access that live data in real time. But for many users, the challenge isn’t connecting the scanner — it’s understanding what the numbers actually mean.

If you’ve ever looked at a live data screen and wondered whether the readings are normal or a sign of trouble, this guide will help you interpret the most common sensor outputs and spot potential issues before they turn into expensive repairs.

Why Live Data Monitoring Matters

Diagnostic trouble codes tell you when something has already gone wrong. Live data, on the other hand, helps you see what’s happening in real time.

By watching sensor readings while the engine is idling, accelerating, or under load, you can identify subtle problems early. This is especially useful for intermittent issues that don’t always trigger a check engine light.

Understanding live data transforms an OBD scanner from a simple code reader into a powerful diagnostic tool.

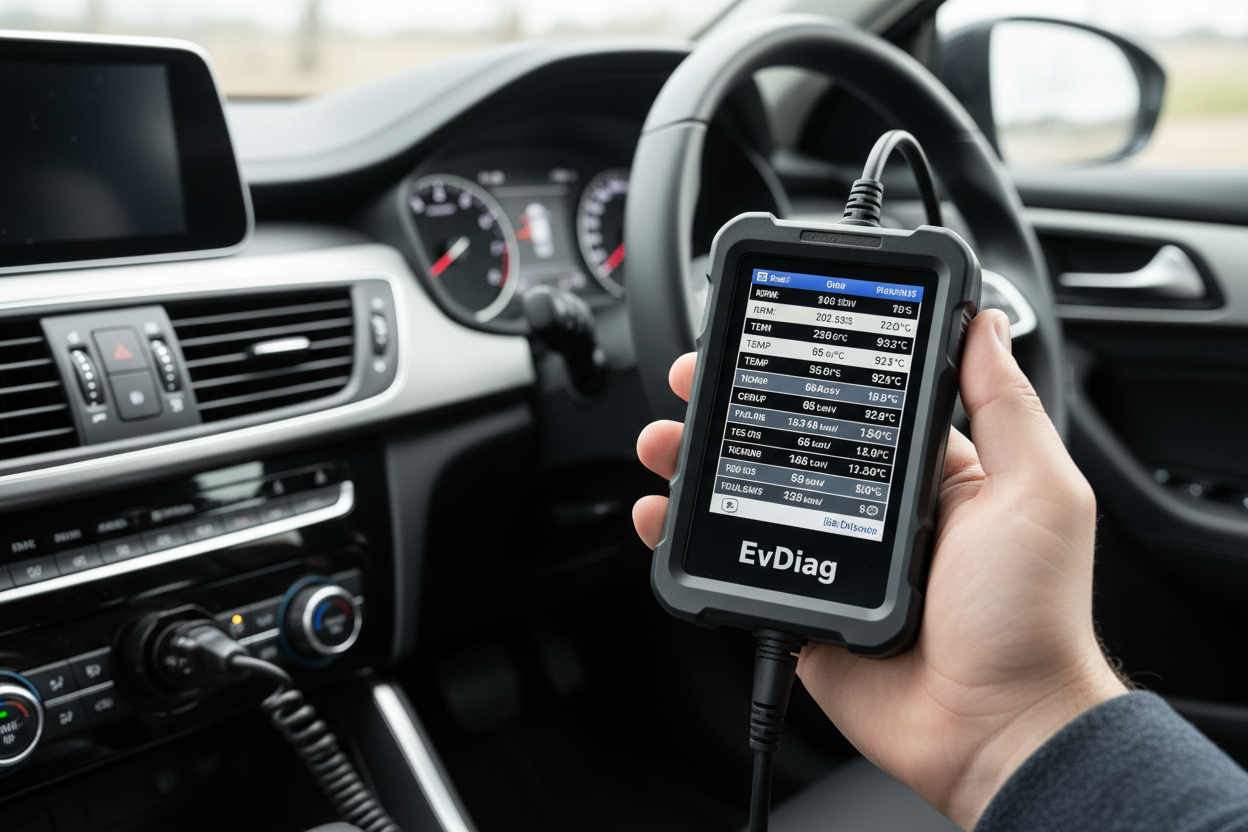

Access real-time vehicle insights with the EvDiag diagnostic scanner.

Understanding the Basics: What Live Data Shows

When you connect EvDiag and open the live data screen, you’ll see a list of parameters updating continuously. Each value represents a specific sensor or calculated measurement from the engine control unit.

At first, it can look overwhelming, but most diagnostics revolve around a handful of key readings.

Common Sensor Readings and What They Mean

Engine Coolant Temperature: The coolant temperature sensor measures how hot the engine is running. After a cold start, the temperature should rise steadily as the engine warms up.

Most vehicles operate within a normal range of roughly 85°C to 105°C (185°F to 221°F). If the reading stays unusually low, it may indicate a stuck-open thermostat. If it climbs too high, you could be dealing with cooling system issues.

Watching this value helps you confirm whether the engine is reaching proper operating temperature.

Intake Air Temperature: This sensor measures the temperature of the air entering the engine. Under normal conditions, it should be close to ambient temperature, rising slightly as the engine warms up.

Extremely high readings may point to heat soak, restricted airflow, or sensor faults. Incorrect air temperature data can affect fuel mixture calculations.

Engine RPM: RPM (revolutions per minute) shows how fast the engine is spinning. At idle, most engines sit between 600 and 900 RPM. During acceleration, the value should increase smoothly without erratic jumps.

Fluctuating or unstable RPM readings can indicate misfires, vacuum leaks, or idle control issues.

Monitoring RPM alongside other sensors helps paint a clearer picture of engine behavior.

Mass Airflow (MAF) Sensor: The MAF sensor measures how much air is entering the engine. The ECU uses this data to determine how much fuel to inject.

At idle, the reading should be relatively low and steady. During acceleration, it should increase proportionally with engine load.

If MAF values seem unusually high or low compared to RPM and throttle position, it may suggest a dirty sensor or airflow restriction.

Throttle Position Sensor: This sensor indicates how far the throttle is open. At idle, it typically shows a small percentage, increasing smoothly as you press the accelerator.

Sudden jumps or inconsistent readings may point to throttle body or sensor issues. Because throttle position influences fuel delivery and transmission behavior, accurate readings are critical.

Fuel Trim Values: Fuel trims show how much the engine control unit is adjusting fuel delivery to maintain the correct air-fuel ratio.

Short-term fuel trim reacts quickly to changes, while long-term fuel trim reflects overall trends. Ideally, values should hover close to zero. Consistently high positive or negative numbers may indicate vacuum leaks, injector issues, or sensor inaccuracies.

These readings are among the most useful indicators of engine health.

Oxygen Sensor Readings: Oxygen sensors monitor exhaust gases to ensure proper combustion. Their voltage or air-fuel ratio readings should fluctuate as the engine adjusts fuel delivery.

A sensor stuck at one value or responding slowly may indicate failure or contamination. Watching these values helps diagnose fuel system efficiency.

Monitor live engine data easily with EvDiag — see how it works.

How to Spot Abnormal Patterns

Interpreting live data isn’t just about knowing individual numbers — it’s about seeing how they relate to each other.

For example, if RPM increases but the MAF reading doesn’t rise accordingly, airflow measurement could be inaccurate. If coolant temperature rises but the cooling fan never activates, there may be a control issue.

Looking for consistency between related sensors often reveals more than focusing on a single parameter.

Another key tip is to observe readings under different conditions. Compare idle values with light acceleration and steady cruising. Sensors should respond logically and smoothly to changes.

Erratic behavior usually points to problems.

Real-World Diagnostic Example

Imagine a vehicle experiencing poor fuel economy without any warning lights. Live data might show long-term fuel trim consistently above normal, indicating the ECU is adding extra fuel.

From there, you might check MAF readings or look for vacuum leaks. Without live data, this issue could go unnoticed until performance worsens.

This is where EvDiag becomes more than a scanner — it becomes a diagnostic assistant.

When Live Data Helps the Most

Live monitoring is particularly useful when diagnosing intermittent issues such as rough idle, hesitation during acceleration, or unexplained overheating.

Instead of guessing, you can watch the system react in real time and pinpoint the source of the problem more confidently.

For DIY enthusiasts, this knowledge saves time and reduces unnecessary parts replacement. For professionals, it speeds up troubleshooting.

Final Thoughts

Live data monitoring turns raw numbers into meaningful insights about your vehicle’s health. With the EvDiag diagnostic scanner, you gain visibility into how your engine and systems behave moment by moment.

Understanding common sensor outputs like temperature, airflow, RPM, and fuel trims helps you identify normal behavior, recognize warning signs early, and make smarter maintenance decisions.

Once you learn to read live data, you’re no longer relying solely on warning lights — you’re understanding the language your vehicle uses to communicate.

Ready to diagnose with confidence? Explore EvDiag today.
