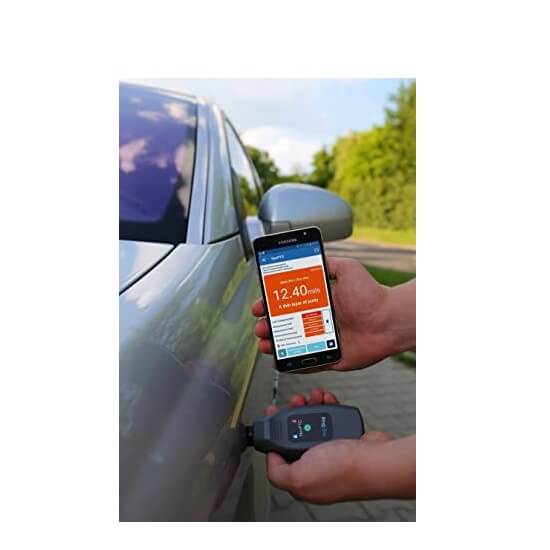

NexPTG devices are the most innovative wireless thickness gauges on the market. NexPTG devices perform 10 measurements per second and show very precise readings, what is more, it can be used to check virtually any car. NexPTG automatically recognizes and tests the lacquer coating on steel and aluminium elements.
The basic version of the NexPTG lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing. The gauge has a Lacquer Coating Analysis System (SAPL), thanks to which you can easily detect interference with the coating. This version has a movable head allowing for precise measurements on concave and convex elements.
Testing on the substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]
Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
Range of measurement: 0 – 1000 μm (0 – 39.37 mils)
Resolution of measurement: 10 μm (0.4 mils)

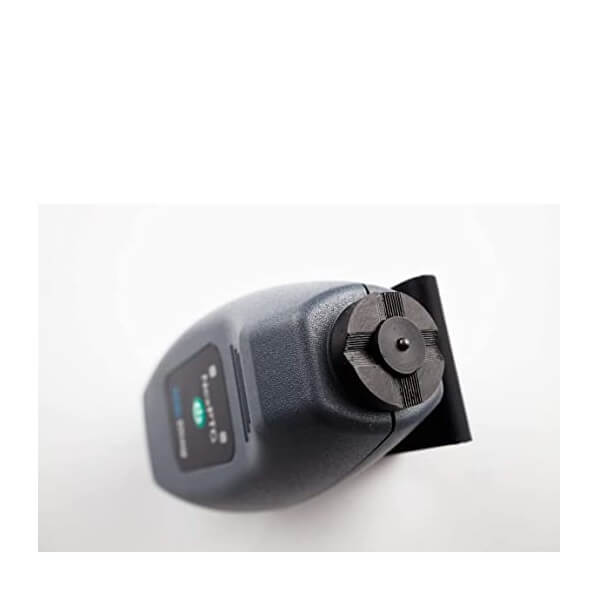

Type of probe/End of probe: movable/spherical
Possible measurement on curvatures (profiled probe housing)
Measurement memory: up to 300 items
Wireless transmission: Bluetooth 4.0 LE
Time of continuous work on alkaline batteries: up to 100 hours
Ambient temperature: -20 ° C to +40 ° C
SAPL Basic: lacquer coating analysis system
Testing relative to reference point
Measurement statistics
Supported systems: iOS / Android
Extended: lacquer coating analysis system Suggested measurement points Creation and export of measurement history Creation and export of reports API communication Supported systems: iOS / Android Message indication: Text, graphic, audio
Application update: Free
Unit of measurement: μm or mils
Ambient temperature for the gauge's work: From -20 to + 40 °C Time of continuous work on alkaline batteries: Up to 100h Number of measurements per second : 10 Dedicated API (additional paid): Yes
Key Features
NexPTG devices are the most innovative wireless thickness gauges on the market. NexPTG devices perform 10 measurements per second and show very precise readings, what is more, it can be used to check virtually any car.
NexPTG automatically recognizes and tests the lacquer coating on steel and aluminum elements.
An advanced version of the NexPTG, lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing.
The Standard Plus version has a movable head allowing for precise measurements on concave and convex elements.
NexPTG has a dedicated application. You can install it on any mobile device equipped with iOS or Android. The dedicated application will allow you to examine the lacquer coat with unprecedented accuracy and precision.
Get free demo app
Download and launch the NexPTG app.
Start the demo mode on the main screen.
The application will automatically simulate the measurements of the NexPTG Professional device.
You can test the application without access to the device.
NexPTG Standard Plus specification
FUNCTIONALITIES
NEXPTG STANDARD PLUS
Range of measurement
0 - 1000 μm (0 - 39,37 mils)
Measurement resolution
10 μm (0,4 mils)
Type of probe / Probe ending
Movable / Spherical
Probe housing
Profiled
Curve measurement
Yes
Measurement memory
Up to 300*
Substrate recognition
Steel, Galvanized Steel**, Aluminum
Certificate
No
Lacquer Coating Analysis System - SAPL
Basic
Voice commands
No
Types of bodies in the report
N/A
Dedicated vehicle body
No
Works with Smartwatches
No
VIN code reader
No
Warranty
24 months
Individual layout
No
Multilingual menu
PL, EN, DE, RU, CZ, FR, ES, IT, FE, HE, NL, NO, TR, HU, SA, JP
Suggested measurement points
No
Creation of reports and measurement history
No
Export of reports and measurement history to e‑mail
No
API communication
No
Dedicated API (additional paid)
No
Number of measurements per second
10
Time of continuous work on alkaline batteries
Up to 100h
Ambient temperature for the gauge's work
From -20 to + 40 °C
Unit of measurement
μm or mils
Substrate testing
Steel, Galvanized Steel, Aluminum
Communication with the application
Bluetooth 4.0 LE
Application update
Free
Message indication
Text, graphic, audio
Housing colour
Grey
Weight of the device without batteries
57 grams
Size
108 x 50 x 28 mm
Availability on systems
Android, iOS
Supported batteries
2xAA
Measurement modes
Continuous, Single
Testing relative to reference point
Yes
Automatic device shutdown in period of inactivity
Yes
Measurement statistics
Yes
Enrichment with new features
No
Buyer’s guide
No
NexDiag NexPTG Standard Plus Wireless Vehicle Paint Coat Thickness Measure Gauge for Automotive Paint Thickness Measurement Tool
