Unleash the full potential of your car audio system with the Clarion MCD360. Whether you’re running a 2-way or full 3-way setup, this electronic crossover gives you precise control over front, rear, and subwoofer signals. With adjustable frequency controls, remote subwoofer level control, and gold-plated RCA outputs, it’s a favorite among audiophiles who want clean, powerful separation and tuning flexibility.
Key Features & Why They Matter

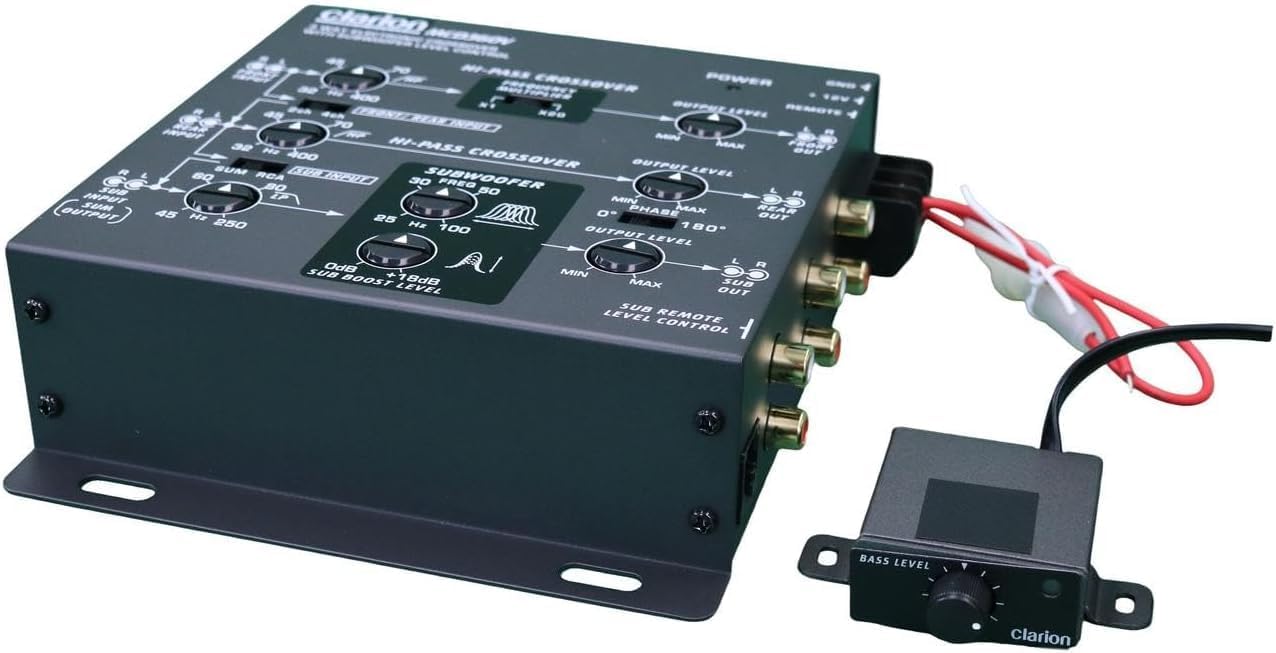

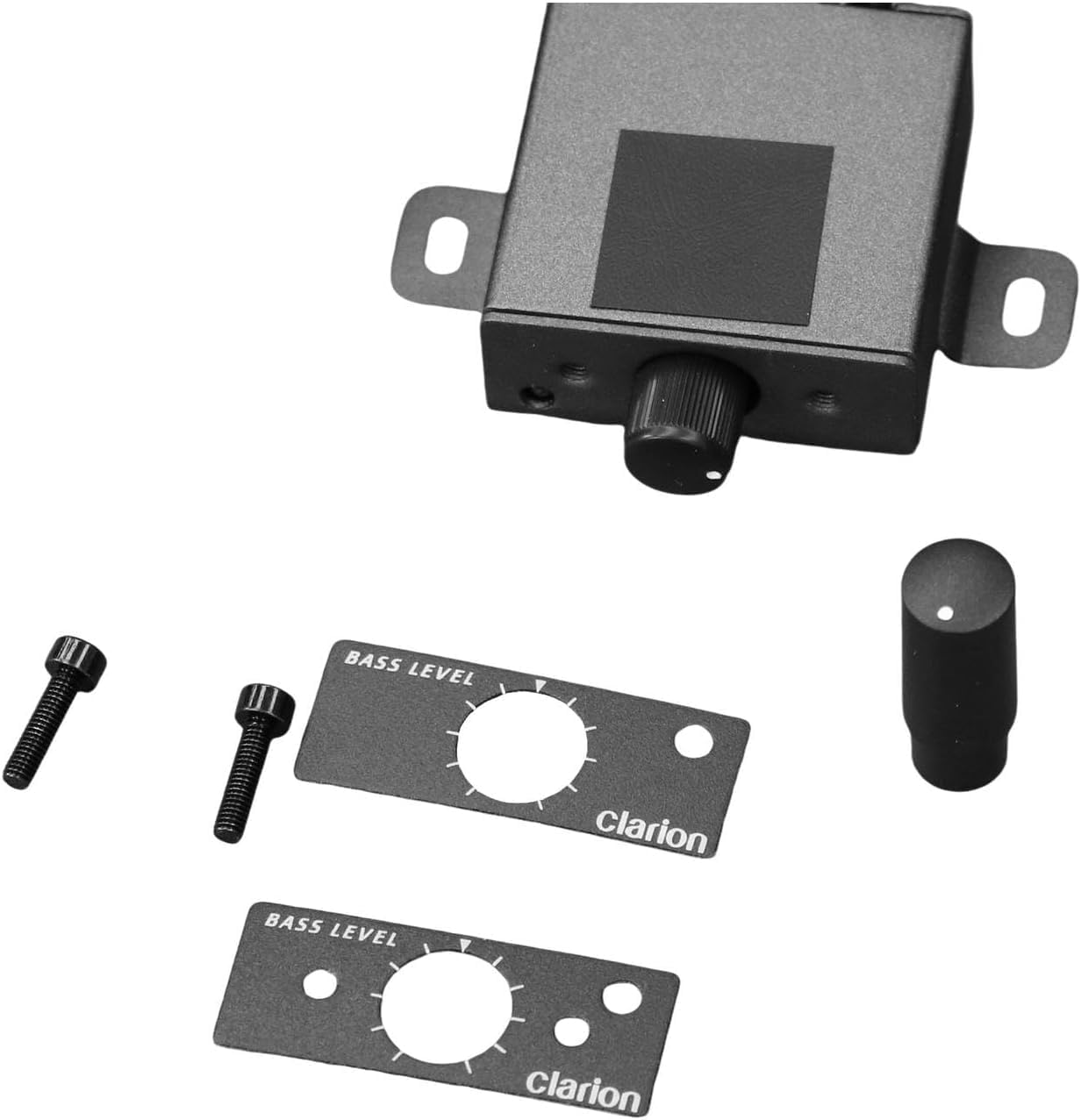

2 / 4 / 6 Channel Input Support — Compatible with a variety of amplifier/source setups to adapt to your system’s architecture. 6-Channel / 5 V RCA Outputs (Front / Rear / Subwoofer) — Delivers clean signal levels to amplifiers with low distortion. Continuous Variable Crossovers (32 Hz – 8 kHz) — For both front and rear outputs, with a high-pass slope of 18 dB per octave. Subwoofer Crossover Adjustable (45 Hz – 250 Hz) + Bass Boost — Fine-tune your low end with boost levels and phase control. Remote Subwoofer Level Control (included) — Let you dial sub level from the driver’s seat. Gold-Plated RCA Terminals & Isolation Circuit — Minimize noise and signal loss, maintaining clarity and detail. High / Low Input Switching — Flexible input for different source units and signal types. Power & Ground LEDs / Protection — Provides visual feedback and helps with fault diagnostics.
Technical Specifications (as per Clarion documentation)
Spec
Detail
Crossover Slope
18 dB per octave (third-order Butterworth)
Frequency Response
10 Hz – 30 kHz (-3 dB)
THD
0.01% at 1 V output
Signal-to-Noise Ratio
> 100 dB
Output Voltage
Up to 5 V (RCA)
Input Impedance
~20 kΩ
Output Impedance
~100 Ω
Power Requirement
14.4 V DC (negative ground), ~0.5 A max
Dimensions
152 × 180 × 43 mm
Mounting
Mount using the side flanges / mounting holes on a rigid surface
- Upgrading factory systems for better control over speaker distribution - Building high-fidelity 3-way systems with tweeters, mids, and subwoofers - Car audio installers who need flexibility and tuning depth in one crossover unit - Those looking to tame bass, adjust sub levels on the fly, or reduce distortion in complex setups
FAQs
1. What is the Clarion MCD360 3-Way Electronic Crossover used for? The MCD360 is designed to separate audio frequencies into front, rear, and subwoofer channels, ensuring clear and balanced sound in your car audio system.
2. Can I use the Clarion MCD360 with any car amplifier? Yes, the crossover works with most aftermarket car amplifiers that accept RCA inputs, making it a versatile addition to your setup.
3. What makes the MCD360 better than a passive crossover? Unlike passive crossovers, the MCD360 provides precise electronic tuning, cleaner signal separation, and adjustable crossover points for better sound quality.
4. Does this crossover include a subwoofer control? Yes, it includes a dedicated subwoofer output with adjustable level control, allowing you to fine-tune your bass response.
5. Is the Clarion MCD360 difficult to install? No, it’s relatively straightforward for anyone familiar with car audio installations. Professional installation is recommended for the best results.
6. Can I use the MCD360 for both 2-way and 3-way systems? Yes, the crossover supports both 2-way and 3-way configurations, giving you flexibility depending on your speaker setup.
7. What inputs and outputs are available on the MCD360? It features RCA inputs and outputs for front, rear, and subwoofer channels, ensuring compatibility with most aftermarket car audio systems.
8. Does the crossover improve sound clarity? Absolutely. By separating and directing frequencies properly, the MCD360 reduces distortion and delivers a cleaner, more dynamic sound.
9. What is the size of the Clarion MCD360 unit? The unit is compact and designed to fit conveniently in most vehicles without taking up much space.
10. Is the Clarion MCD360 worth it for car audio upgrades? Yes, if you’re serious about achieving precise tuning and enhanced sound performance, the MCD360 is an affordable yet professional-grade solution.

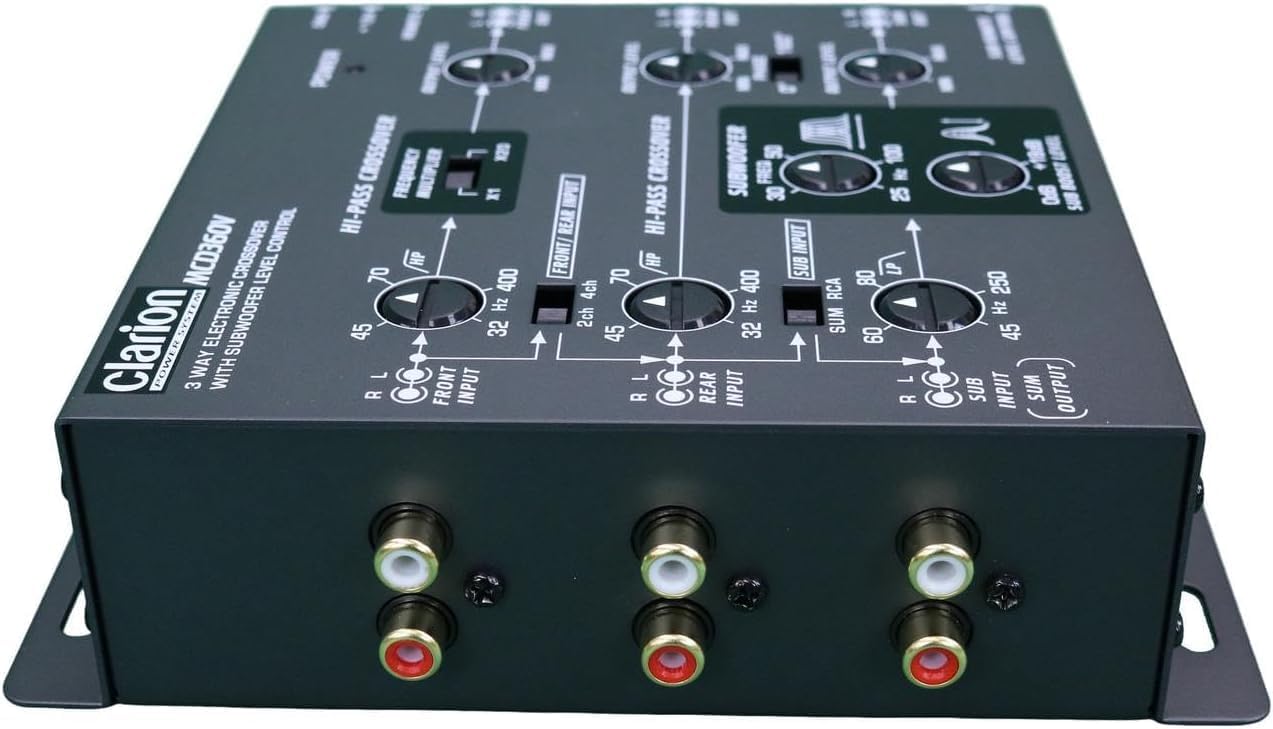

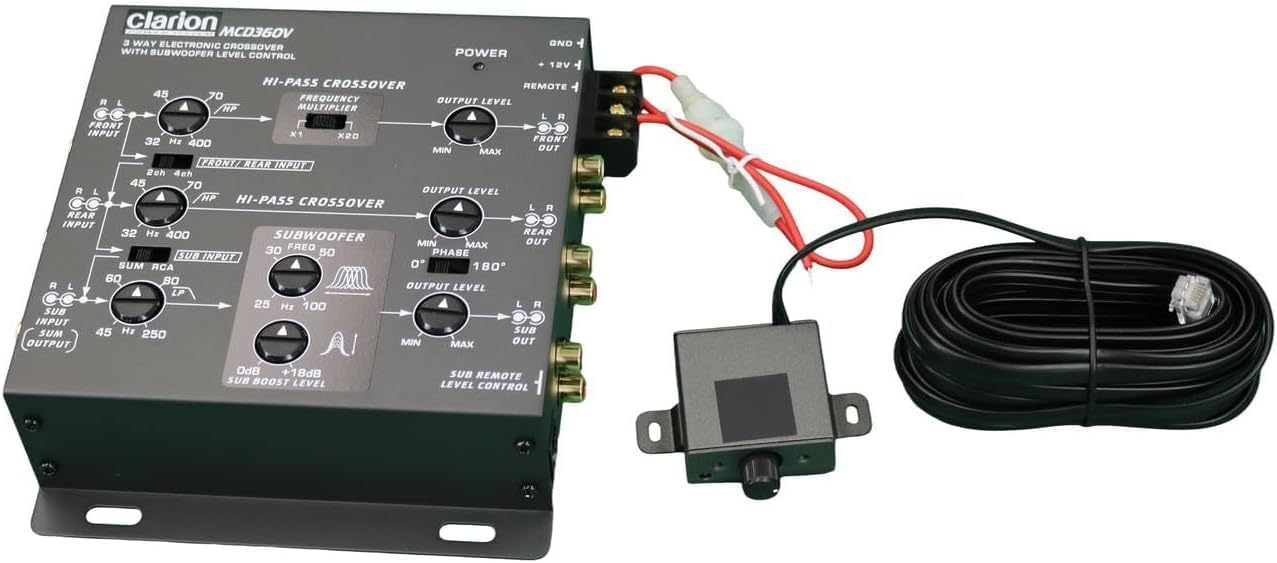

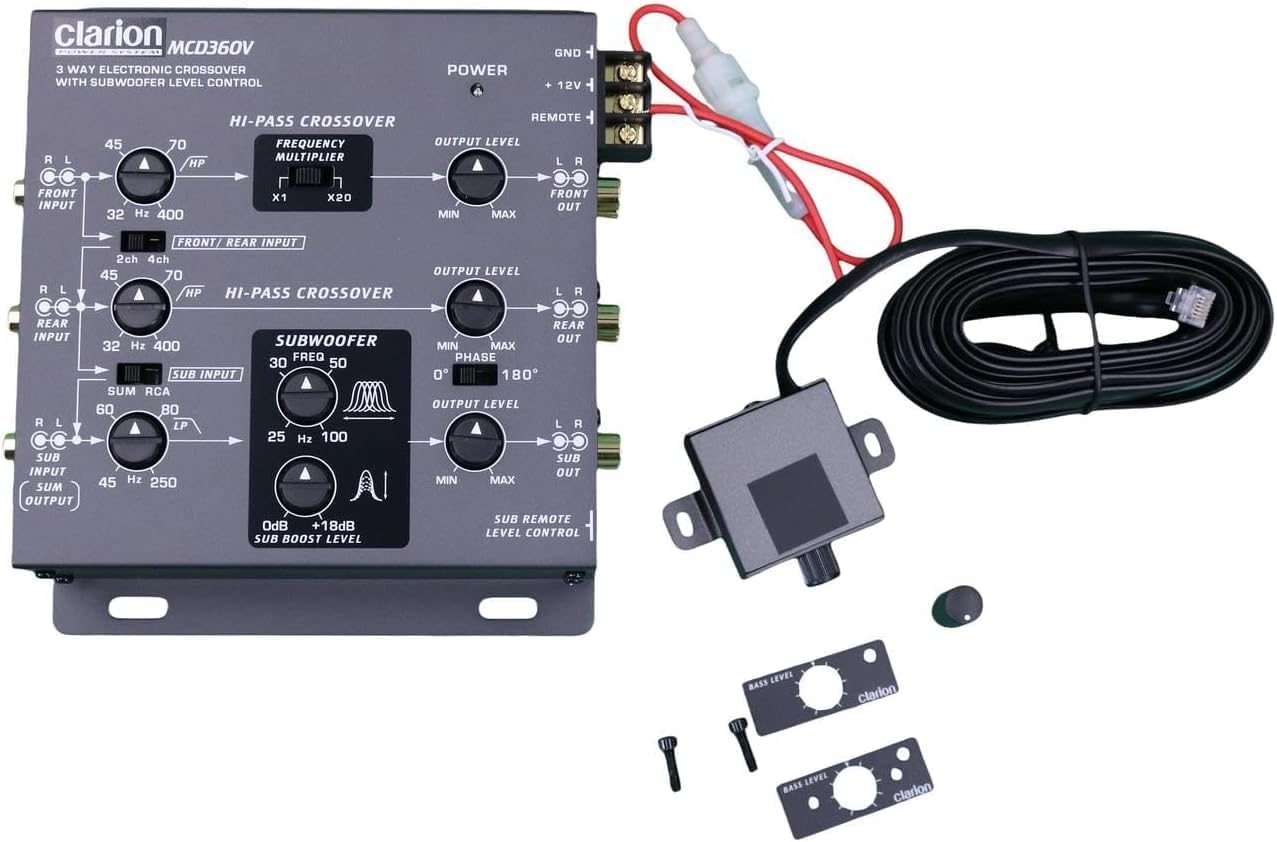

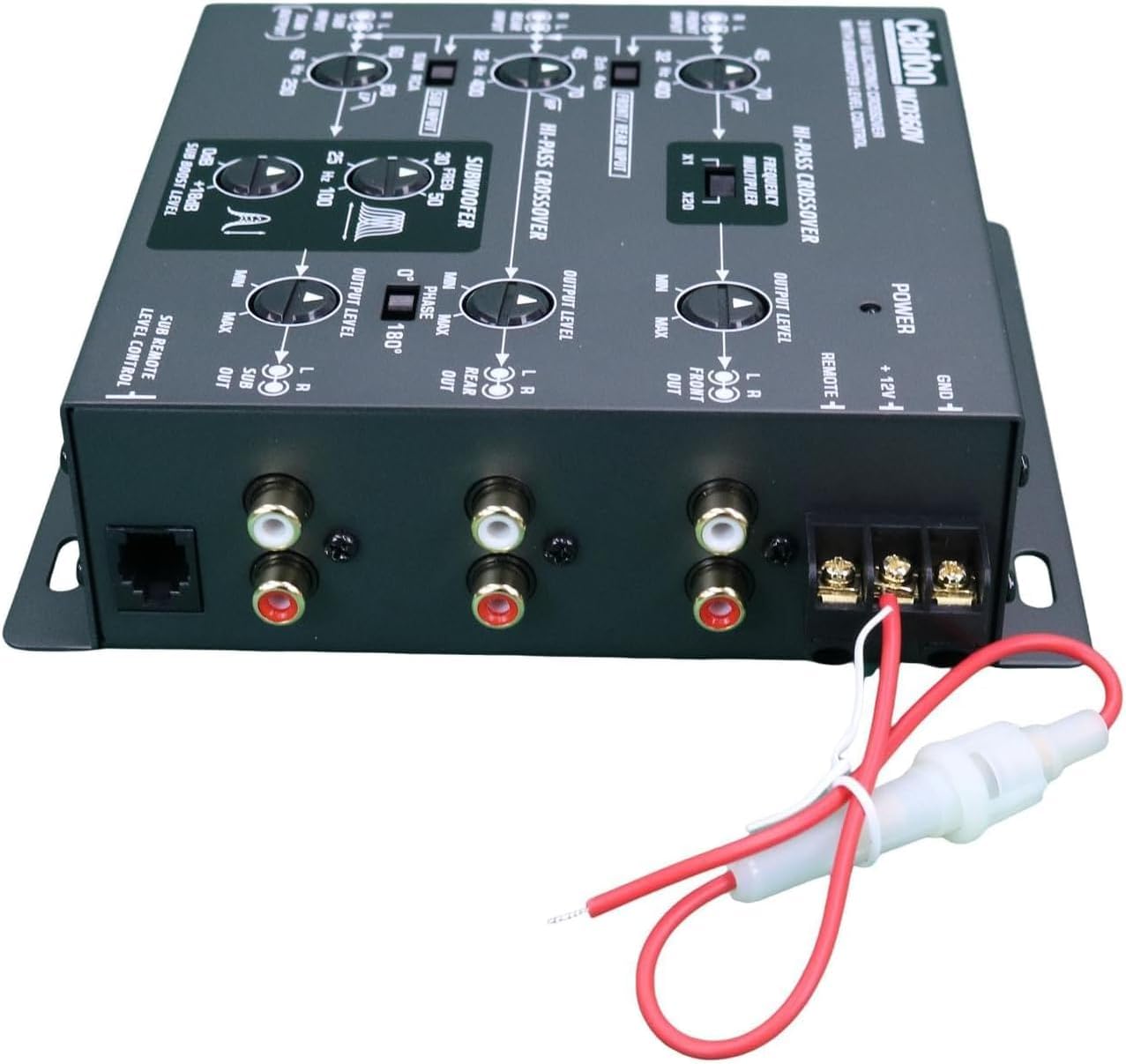

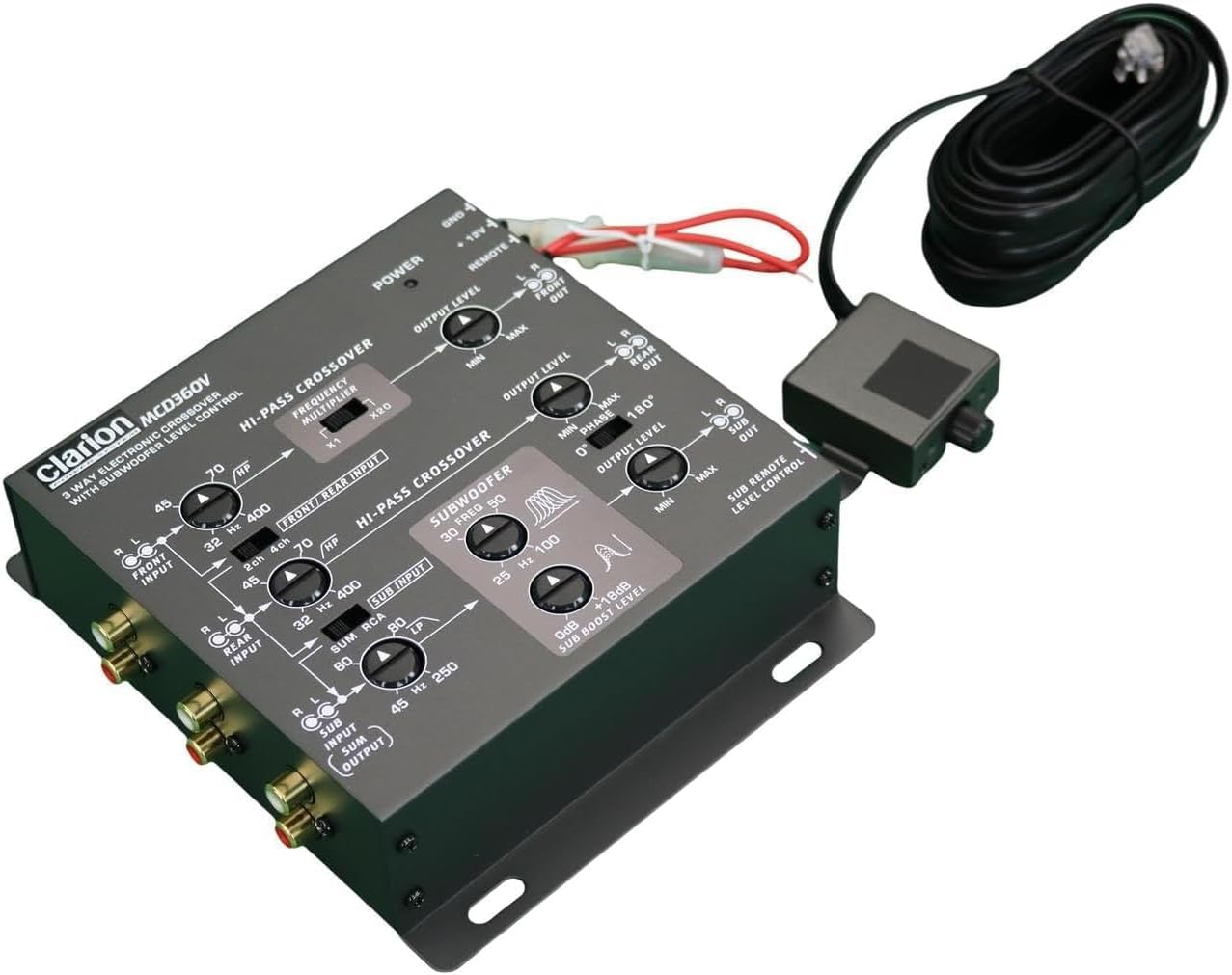

Clarion MCD360 3-Way Electronic Crossover with Subwoofer Control
